Ohms Law Kit with Built-in Power Supply

Product Code : SCL-EAE-11099

This Ohm's law apparatus has its own built-in power supply, so basic V = IR work needs no separate power unit. Students change the voltage or the resistance, record a voltage and a current reading at each setting and plot a V-I graph. A straight line through the origin shows an ohmic conductor.

Specifications of the Ohm's law kit

ComponentSpecification
Power supplyBuilt in
PrincipleOhm's law, V = IR
ReadingsVoltage and current at each setting
AnalysisV-I graph for an ohmic conductor
DocumentsInstallation instructions and a manual
House codeSCL-EAE-11099
ManufacturerLab Exports, Delhi

Verifying Ohm's law with the kit

Ohm's law says that the current through a metallic conductor is proportional to the potential difference across it, as long as its temperature stays the same. The resistance R is the ratio V/I.

  • V-I graph for one resistor. Wire the circuit as in the experiment diagram, with the ammeter in series with the resistor and the voltmeter across it. Start at the lowest setting and raise the voltage in steps, noting both readings each time. Plot V against I. The slope of the straight line gives R.
  • Two conductors compared. Repeat the readings with a second conductor, for example a coil wound from constantan wire. Its line has a different slope, which makes the meaning of resistance easy to see.
  • Safe working. Keep the kit on a dry, stable bench. Switch off before changing any connection, and never join the supply terminals directly together.

Frequently Asked Questions

How can Ohm's law be verified by experiment?

Take several pairs of voltage and current readings while the conductor stays at a steady temperature, and work out V/I for each pair. If the ratio stays the same and the V-I graph is a straight line through the origin, the law is verified.

Does resistance depend on temperature?

Yes. The resistance of a metal conductor rises as it gets warmer, which is why Ohm's law is stated for a constant temperature. Keep the current small and switch off after each set of readings, so the resistor does not warm up during the run.

Does the resistance of a conductor depend on its dimensions?

Yes. R = ρL/A, where ρ is the resistivity of the material, L the length and A the area of cross-section. A longer wire has more resistance and a thicker wire of the same material has less.

What are the sources of error in the Ohm's law experiment?

The usual ones are loose or dirty connections and a meter that does not read zero before the start. Others are reading an analogue scale at an angle and heating of the conductor when current flows too long. Tighten every terminal, check each zero and switch off between readings.

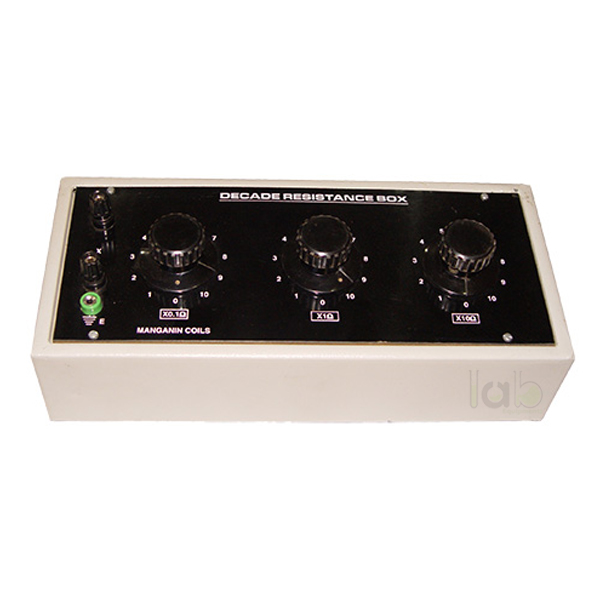

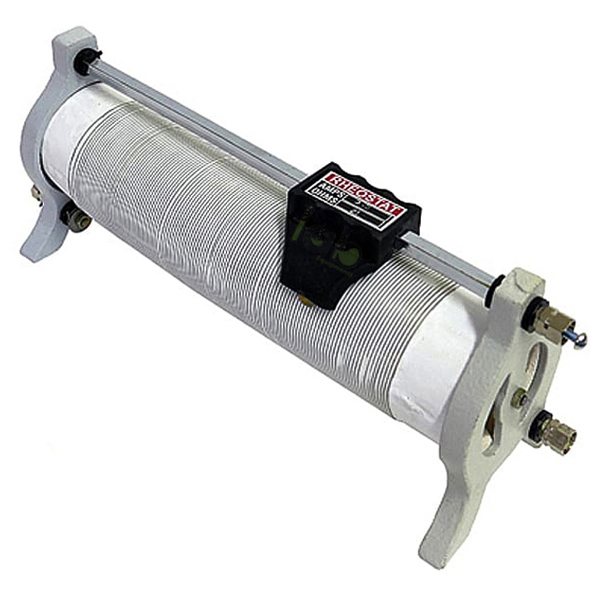

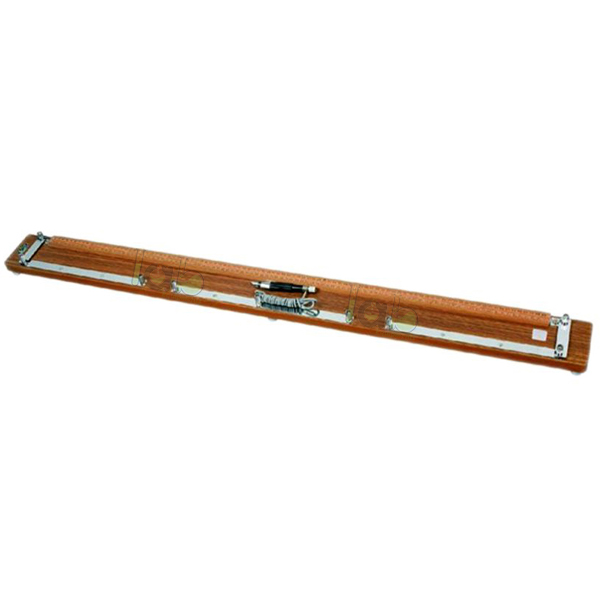

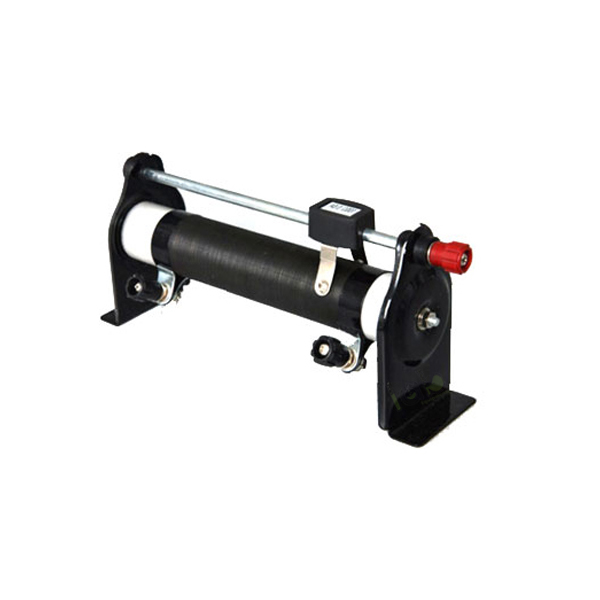

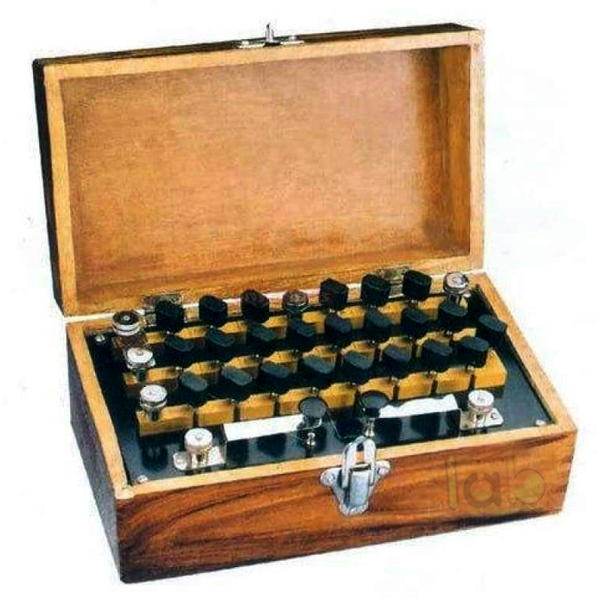

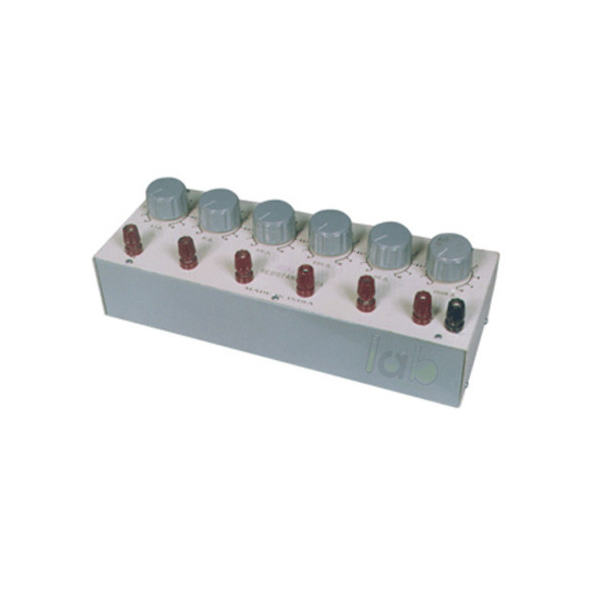

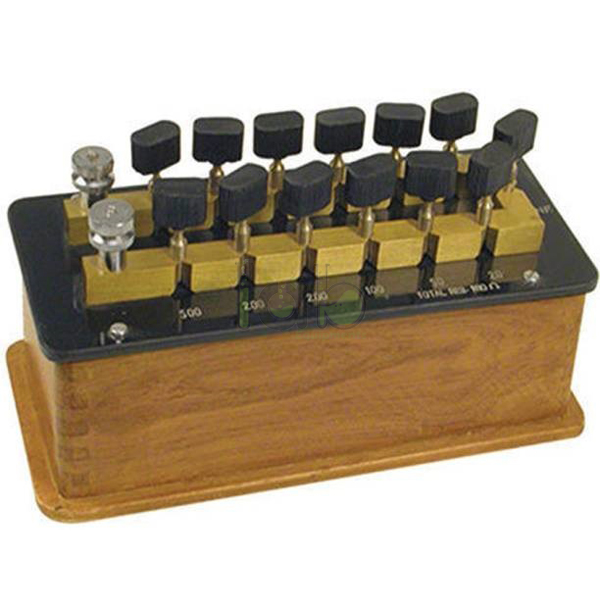

Other apparatus for Ohm's law practicals

More apparatus is in the Electrical and Electronics section of the Physics Lab range.

To enquire, email [email protected] with the house code SCL-EAE-11099 and the quantity, or use the Add To Cart button on this page. Tender buyers can also see the Tenders and OEM page.
