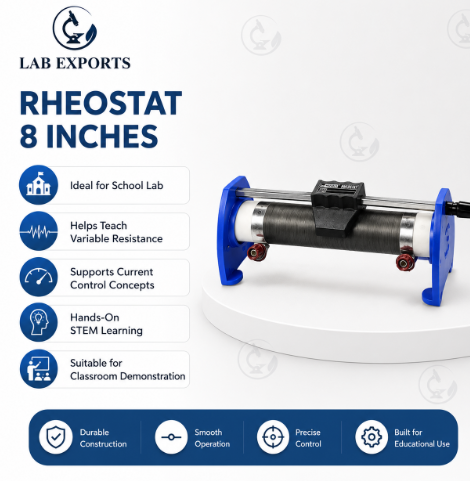

Rheostat 8 Inches Manufacturer,Supplier and Exporter in India
Product Code : SCL-EAE-11282
The Rheostat 8 Inches controls current by changing the effective length of resistance wire connected within a circuit. Moving the sliding contact changes the resistance between the selected terminals, allowing users to observe how resistance affects current and voltage.
The compact 8-inch format is suitable for classroom demonstrations and student practical work. The resistance value, current rating, resistance-wire material, tube construction, terminal arrangement and dimensional basis of the 8-inch designation must be confirmed from the approved specification before publication or procurement.
Key Features
8-inch laboratory format: Provides a compact variable-resistance unit for educational circuit experiments.
Adjustable resistance: A movable contact changes the effective resistance included in the circuit.
Current-control function: Helps demonstrate how increased resistance reduces current under suitable circuit conditions.
Visible operating principle: Allows students to relate slider position to changes in circuit behaviour.
Supports practical measurement: Can be used with compatible ammeters and voltmeters to record electrical values.
Reusable teaching apparatus: Suitable for repeated laboratory sessions when operated within its confirmed rating.
Simple circuit integration: Connects with suitable low-voltage supplies, switches, leads and experimental loads.
Technical Specifications
|
Specification |
Detail |
|
Product Name |
Rheostat 8 Inches |
|
Brand |
Lab Exports |
|
Product Category |
Physics Laboratory Equipment – Electrical and Electronics |
|
Nominal Capacity |
8-inch rheostat |
|
Primary Function |
Variable resistance and current control |
What's Included in the Kit
1 × Rheostat 8 Inches
Connecting leads, laboratory meters, switches, power supply and experiment instructions are not confirmed as included. Verify the complete supply scope before ordering.
Applications / Uses
Controlling current in a compatible low-voltage circuit.
Investigating the relationship between resistance and current.
Conducting supervised Ohm’s law experiments.
Adjusting lamp brightness in a suitable demonstration circuit.
Observing changes in voltage and current as the slider moves.
Studying the operating principle of a sliding variable resistor.
Supporting introductory physics and electrical training practicals.
How to Use the Rheostat 8 Inches
Place the rheostat on a clean, dry and stable laboratory bench.
Check the confirmed resistance and maximum current ratings.
Move the slider to a position that introduces high resistance.
Keep the power supply switched off while making connections.
Connect the correct terminals according to the experiment diagram.
Switch on the low-voltage supply and move the slider gradually.
Observe and record the corresponding current or voltage readings.
Switch off the supply before changing connections or removing the apparatus.
Safety note: Do not exceed the confirmed current or power rating. The resistance winding may become hot during operation. Disconnect the supply and allow the unit to cool before touching or storing it.
Care & Maintenance
Store the rheostat in a dry, dust-free laboratory cabinet.
Keep the resistance winding, slider and terminals clean.
Move the slider gently and do not force it against the end stops.
Inspect the winding, contacts and terminal connections before use.
Why Choose Lab Exports?
Lab Exports manufactures and exports scientific laboratory instruments, experiment setups, science kits, mathematics kits, didactic models and STEM equipment. Its range includes electrical and electronics apparatus for institutional physics laboratories. Buyers can confirm the resistance value, current rating, construction and accessories before ordering so that the supplied rheostat matches the intended experiment.
Frequently Asked Questions
What is a Rheostat 8 Inches used for?
It is used to vary resistance and control current in a compatible educational electrical circuit.
How does a sliding rheostat work?
The slider changes the effective length of resistance wire included in the circuit. This changes the resistance between the selected terminals.
Can this rheostat be used for an Ohm’s law experiment?
Yes. It can vary circuit current when used with a suitable power supply, fixed resistor, ammeter and voltmeter.
What is the resistance rating of the rheostat?
The resistance value and maximum current rating have not been supplied. Both specifications must be confirmed before ordering or use.
Is the Rheostat 8 Inches suitable for school laboratories?
Yes. It is intended for supervised electrical experiments in schools, colleges and introductory technical laboratories.
Why does a rheostat become hot?
A rheostat dissipates electrical energy as heat while carrying current. Excessive current or prolonged operation may overheat the resistance winding.
Request the confirmed electrical rating from Lab Exports, or browse the Electrical and Electronics Laboratory Equipment category. Related apparatus includes the Ohm’s Law Kit with Built-in Power Supply, Laboratory Meters and Digital LCD Ammeter.
Recommended Product Image ALT Text: Rheostat 8 Inches with sliding contact and electrical terminals for physics laboratory experiments
