Steam Engine Model with Dynamo Manufacturer,Supplier and Exporter in India

Product Code : SCL-EAE-11212

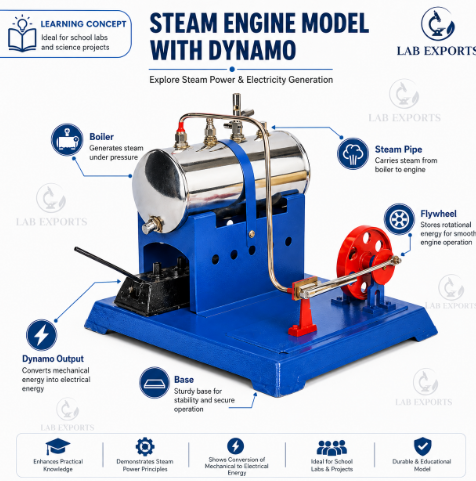

The Steam Engine Model with Dynamo by Lab Exports is a classic educational tool designed to bring the principles of the Industrial Revolution and energy transformation to life. Engineered for durability and safety, this model features a heavy-gauge metal boiler, a fully operational double-acting piston assembly, and a miniature electrical generator (dynamo). The entire assembly is securely mounted on a sturdy, heat-resistant wooden base board, ensuring stable tabletop operation during high-temperature demonstrations.

Ideal for STEM curricula, this apparatus clearly illustrates how thermal energy from steam pressure is converted into mechanical kinetic energy by the piston, which then drives the integrated dynamo via a belt or gear system to produce electricity. The generated electricity is directed to an onboard light-emitting diode (LED) or miniature bulb, giving students a direct, satisfying visual confirmation of energy transformation in real time. It is an indispensable resource for schools looking to enrich their physics lab equipment inventory.

Key Features

Durable Construction: Heavy-gauge brass boiler and robust steel frame designed to withstand repeated academic lab sessions.

Direct Energy Demonstration: Visually converts thermal energy to mechanical energy, and finally into electrical energy.

Integrated Safety Valve: Features a spring-loaded pressure relief safety valve to prevent excess pressure buildup.

Visible Mechanism: Open cylinder and flywheel layout allows students to observe the sliding valve and piston movements clearly.

Low Maintenance Dynamo: Efficient miniature generator produces a measurable electric current with low rotational friction.

Sturdy Foundation: Heavy, non-slip base prevents shifting or vibration during operation.

Technical Specifications

What's Included in the Kit

1 x Steam Engine Assembly with integrated boiler

1 x Miniature Dynamo (mounted)

1 x Connecting drive belt

1 x Solid-fuel tablet burner (or spirit burner)

1 x Water filling funnel

1 x Mounted LED/bulb indicator

1 x Instruction manual with safety guidelines

Applications / Uses

Demonstrating the First and Second Laws of Thermodynamics in academic settings.

Visualizing mechanical linkage operations, including eccentrics, sliding valves, and flywheels.

Exploring electromagnetism and power generation through the integrated dynamo.

Enhancing STEM and vocational training projects focused on historical machinery and mechanical engineering.

How to Use the Steam Engine Model with Dynamo

Place the model on a flat, level, and heat-resistant surface in a well-ventilated room.

Unscrew the safety valve and use the provided funnel to fill the boiler with distilled water up to approximately 70% capacity (never overfill). Tighten the safety valve securely.

Place the drive belt around the engine flywheel and the dynamo pulley.

Add fuel (spirit or designated solid fuel tablets) to the burner tray, place it under the boiler, and carefully ignite it using a long match or lighter.

Wait 3 to 5 minutes for the water to boil and build up sufficient steam pressure.

Gently flick the flywheel to initiate the piston cycle. Once running, observe the generator light up the LED indicator as it converts mechanical motion to electricity.

Safety Note: Never leave the steam engine unattended during operation. Do not touch the boiler or piston while hot. Always allow the unit to cool down completely before refilling or storing.

Care & Maintenance

Always use distilled water to prevent scale and mineral buildup inside the brass boiler.

Empty any remaining water from the boiler after the unit has cooled down completely to prevent corrosion.

Apply a drop of lightweight machine oil to the piston, sliding valves, and axle bearings before and after each use to maintain smooth movement.

Store the model in a clean, dry, and dust-free cabinet away from corrosive chemicals or humidity.

Why Choose Lab Exports

Lab Exports is a trusted global manufacturer and exporter of premium educational kits, didactic models, and high-precision laboratory instruments. With decades of manufacturing expertise, we supply schools, universities, and technical institutes worldwide with safe, durable apparatus. Our production processes prioritize strict safety controls, making our models the preferred choice for educators seeking long-lasting, reliable school education kits and scientific demonstration equipment.

Frequently Asked Questions

What is a Steam Engine Model with Dynamo used for?

It is used in physics and engineering classes to demonstrate how heat energy is converted into mechanical work, which is then transformed into electrical energy using an attached dynamo generator.

What fuel should I use to heat the boiler?

You should use denatured alcohol (methylated spirits) in the burner, or designated dry solid-fuel tablets, depending on the burner type supplied with your specific kit.

Can this steam engine model be used safely in schools?

Yes, it is highly safe for school demonstrations when operated by or under the close supervision of an instructor. It features a built-in spring-loaded safety pressure valve to prevent over-pressurization.

Why is distilled water recommended instead of tap water?

Distilled water prevents calcium and mineral scale deposits from building up inside the brass boiler, which ensures a longer lifespan and maintains heat transfer efficiency.

How does the dynamo generate electricity on this model?

The dynamo is connected to the engine's spinning flywheel by a belt. As the flywheel spins, it rotates the dynamo's internal coil through a magnetic field, producing an electric current that powers the onboard light.

Explore our full range of interactive mechanical systems by visiting our main educational laboratory instruments catalog to find the perfect solutions for your classrooms.
