Young’s Modulus Apparatus Manufacturer,Supplier and Exporter in India

Product Code : SCL-EAST-11178

The Young’s Modulus Apparatus provides a hands-on method for studying the relationship between applied force and extension in a test wire. During the experiment, a load is applied progressively, the resulting change in length is measured, and the Young’s modulus is calculated from the original wire dimensions and observed extension.

The apparatus uses a rigid experimental frame, wire-holding arrangement and load application components to support controlled classroom measurements. It is particularly relevant to practical work in elasticity and properties of matter. Buyers can also explore the broader physics laboratory equipment range for related teaching apparatus.

Key Features

Direct study of Young’s modulus: Demonstrates how a wire extends when subjected to an applied tensile load.

Hands-on elasticity experiment: Helps students connect theoretical concepts of stress, strain and elastic modulus with actual observations.

Stable experimental arrangement: The rigid frame and wire-holding system support consistent positioning during measurements.

Progressive load application: Enables extension to be observed as the applied load is increased in controlled steps.

Suitable for physics education: Intended for school, college, university and technical training laboratory demonstrations.

Reusable laboratory setup: Designed for repeated instructional experiments when handled and maintained correctly.

Supports quantitative analysis: Experimental measurements can be used to calculate Young’s modulus using the standard stress-to-strain relationship.

Technical Specifications

<

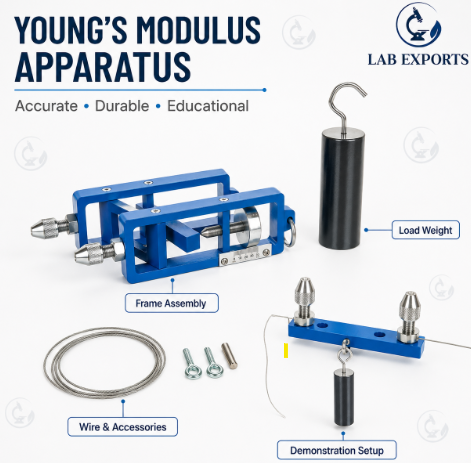

What's Included in the Kit

Experimental frame assembly

Load weight with suspension hook

Wire holder and clamping assembly

Test wire

Adjustment and fastening accessories

Applications / Uses

Determining the Young’s modulus of a test wire.

Demonstrating stress, strain and elastic deformation.

Observing the relationship between tensile load and extension.

Supporting practical lessons on Hooke’s law and elasticity within the applicable elastic range.

Conducting physics experiments in schools, colleges, universities and technical training laboratories.

For closely related laboratory experiments, see the properties of matter equipment and applied mechanics equipment collections.

How to Use the Young’s Modulus Apparatus

Place the apparatus on a stable and level laboratory surface.

Secure the test wire correctly between the designated holding points.

Determine the original effective length of the wire and obtain its diameter using suitable measuring instruments.

Set or record the initial reading before applying the experimental load.

Apply the load gradually and allow the wire to settle before taking each reading.

Record the extension corresponding to each applied load.

Calculate Young’s modulus using the relationship Y = FL / (AΔL), where F is applied force, L is original length, A is cross-sectional area and ΔL is extension.

Repeat measurements when appropriate and compare the results for consistency.

Safety note: Apply loads gradually, keep the load securely suspended, avoid exceeding the apparatus or wire limits, and keep hands and face away from a tensioned wire during the experiment.

Care & Maintenance

Store the apparatus in a clean, dry location after use.

Keep the wire, clamps and moving or adjustment points free from dust and contamination.

Do not drop weights onto the apparatus or subject the frame to sudden impact.

Inspect the wire and fastening points before each experiment and replace damaged components when necessary.

Why Choose Lab Exports

Lab Exports manufactures and exports scientific laboratory instruments, experimental setups, science kits, mathematics kits, didactic models and STEM teaching equipment. The company supplies practical educational apparatus for schools, colleges, universities, training institutions and laboratory buyers. Its physics range covers multiple areas of experimental science, including elasticity, mechanics and properties of matter. Product-specific dimensions, materials and optional configurations should always be confirmed before procurement.

Frequently Asked Questions

What is a Young’s Modulus Apparatus used for?

A Young’s Modulus Apparatus is used to determine the Young’s modulus of a test wire by measuring the extension produced when a known tensile load is applied.

What does Young’s modulus measure?

Young’s modulus measures the stiffness of a material within its linear elastic region. It is defined as longitudinal stress divided by longitudinal strain.

How is Young’s modulus calculated in this experiment?

Young’s modulus is calculated using Y = FL / (AΔL), where F is the applied force, L is the original wire length, A is the wire’s cross-sectional area and ΔL is the measured extension.

Can the Young’s Modulus Apparatus be used in schools and colleges?

Yes. The apparatus is intended for practical physics demonstrations and student experiments in schools, colleges, universities and technical training laboratories.

What measurements are required for a Young’s modulus experiment?

The experiment requires the applied force, original effective length of the wire, wire diameter or cross-sectional area, and the extension produced by the applied load.

What precautions should be taken while using the apparatus?

The wire should be securely mounted, loads should be added gradually, and the stated load limit should not be exceeded. Users should also keep clear of the tensioned wire and suspended load during operation.

For related equipment used to demonstrate elasticity and the mechanical behavior of materials, explore the elasticity and surface tension apparatus collection from Lab Exports.
