Optical Bench Full Shaper Manufacturer,Supplier and Exporter in India
Product Code : SCL-LAO-11180
Lab Exports manufactures this linear optical system using a reinforced structural metal rail profile engineered to resist bowing, twisting, or axis deflection under load. The guide rail integrates a permanently engraved, high-contrast metric scale that runs up to 1500 mm [confirm], allowing technicians to document sub-millimeter position tracking for varied components. This focus on geometric stability guarantees that users achieve absolute co-axial alignment across all optical elements during sensitive wavefront testing parameters.
This versatile setup allows seamless integration of multiple adjustable optical riders and secure spring-loaded lens holders. It serves as an essential core apparatus for secondary educational institutions and high-level physics research labs, giving users direct, tactile experience with ray optics, diffraction, and focal tracking. The durable material composition ensures that the equipment remains functionally reliable through years of high-frequency classroom deployment and scientific instruction.
Key Features
Heavy-Duty Profile Design: The full-shaper track profile prevents alignment sagging or mechanical warping under the weight of heavy components.
High-Contrast Engraved Scale: Incorporates a clear dual-graduated millimetric scale for precise measurement of object-to-image intervals.
Low-Friction Rider Clamps: Equipped with adjustable optical riders that glide smoothly along the rail and lock securely with fine-threaded thumbscrews.
Universal Component Compatibility: Designed to accommodate standard lenses, prisms, apertures, screens, and diffraction gratings safely.
Corrosion-Resistant Surface Treatment: Anodized or powder-coated structural alloys guarantee long-term operational endurance inside high-use science laboratories.
Technical Specifications
|
Specification Attribute |
Detail Value |
|
Scale Resolution |
1 mm intervals (dual graduation) |
What's Included in the Kit

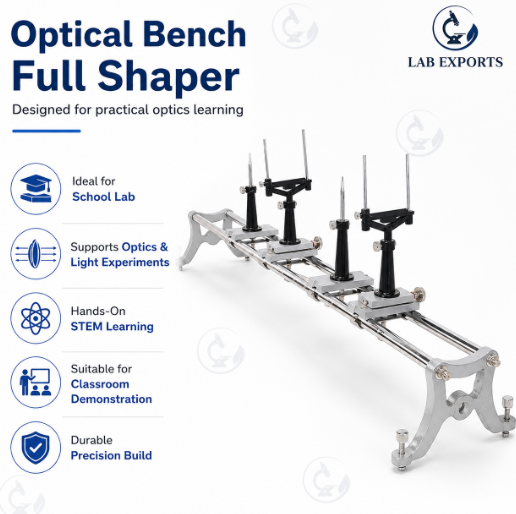

1 x Structural Linear Track Rail (1.5 Meter Full Shaper Bench)
4 x Low-Friction Adjustable Optical Riders
2 x Universal Co-Axial Lens and Mirror Holders
1 x Translucent Object Screen with Centered Target Grid
1 x Technical User Manual with Guided Physics Experiment Frameworks
Applications / Uses
Determining the exact focal length of convex and concave lenses using real-image projection methodologies.
Setting up complex laser diffraction and wave interference demonstrations within integrated physics laboratory apparatus layouts.
Measuring light intensity attenuation profiles and testing real-image magnification properties across a linear axis.
Combining with specialized light sources inside student-led science kits to evaluate advanced ray optics formulas.
How to Use the Optical Bench Full Shaper Setup
Place the linear track rail on a completely flat, level, and vibration-isolated laboratory workbench.
Mount the low-friction optical riders by sliding them carefully onto the structural profile tracks from either open end.
Mount your primary light source assembly at the zero-point marker and clamp it tightly using the integrated locking thumbscrew.
Secure your target lenses, apertures, or measuring screens into their designated holders to track real-image formations along the optical path.
Safety Note: Never stare directly into high-intensity lamps, point-sources, or laser emitters fixed to the track. Tighten all retention screws gently to prevent fracturing glass optical substrates.
Care & Maintenance
Wipe the structural guide rails routinely with a clean, dry microfiber cloth to eliminate airborne dust that can stall smooth rider movement.
Store the bench setup in a temperature-controlled, low-humidity environment to prevent surface corrosion on unpainted adjusting screws.
Avoid applying extreme vertical weight or sudden mechanical shocks to the main rail to preserve perfect axial linearity.
Why Choose Lab Exports
Lab Exports is a premier global manufacturer and exporter of academic scientific equipment, backed by decades of technical engineering experience. Our production infrastructures adhere to rigorous quality control frameworks to ship resilient, classroom-proven tools to schools, colleges, and testing centers globally. By sustaining a structured international logistics pipeline, we guarantee uninterrupted component availability and reliable worldwide supply fulfillment capabilities.
Frequently Asked Questions
What is an Optical Bench Full Shaper Setup used for?
It is a specialized linear track apparatus used in physics laboratories to structurally align, support, and adjust lenses, light sources, and targets for optical geometry experiments.
What material is the track rail constructed from?
The system is manufactured using a rigid, high-grade anodized metal profile designed to achieve exceptional structural durability and minimal mechanical friction [confirm].
Can it be safely used in secondary school science classrooms?
Yes, it is explicitly optimized for high school and college physics courses, enabling students to track focal distances and image variations with intuitive mechanical controls.
Does the standard package include experimental lenses and lamps?
This primary assembly contains the track rail, riders, and adjustable component holders; specific light sources or custom lenses can be supplied via our tailored didactic models and configurations.
How many riders can be supported on the bench rail at the same time?
The standard product includes 4 adjustable riders, but its modular linear profile easily accommodates extra matching units if your curriculum demands multi-lens setup variations.
Explore our complete ecosystem of premium scientific tools and structural setups by browsing our verified STEM models & kits category catalog today.
