Digital IC Trainer with Display Manufacturer,Supplier and Exporter in India

Product Code : SCL-EAE-11161

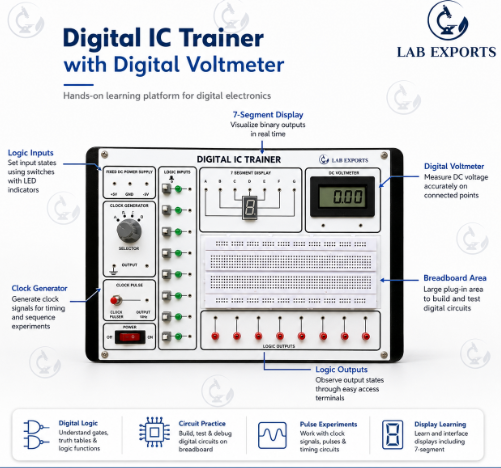

The Digital IC Trainer with Display enhances traditional digital logic training by integrating visual output modules directly onto the primary circuit board. It features a central solderless breadboard alongside integrated logic switches, LED state indicators, variable clock generators, and built-in seven-segment displays. This all-in-one architecture allows students to physically construct multiplexers, decoders, and counters, providing immediate visual numerical feedback without requiring external test and measurement instruments.

Built for heavy academic use, the trainer is secured in an impact-resistant, powder-coated enclosure. It utilizes short-circuit protected, regulated DC power supplies (+5V, +12V, -12V) essential for safely powering sensitive integrated circuits. By streamlining circuit assembly and eliminating wiring clutter, it serves as a highly efficient and reliable tool within standard physics lab equipment setups.

Key Features

Integrated Visual Displays: Features built-in 7-segment LED displays (configurable for BCD inputs) for direct numerical readouts of digital counter and decoder outputs.

Regulated Power Supply: Includes internal, short-circuit-protected DC power supplies (+5V, +12V, -12V) tailored specifically for standard TTL and CMOS logic families.

Onboard Clock Generators: Variable frequency pulse generators (typically 1Hz to 1MHz) enable precise testing of sequential logic components like flip-flops and shift registers.

Logic Inputs and Indicators: Equipped with dedicated toggle switches for applying High/Low logic inputs and individual bi-color LEDs for verifying logic output states.

Solderless Prototyping Area: An expansive central breadboard matrix allows for rapid, tool-free insertion of standard Dual In-line Package (DIP) integrated circuits.

Durable Academic Construction: Housed in a robust cabinet designed to withstand continuous, repetitive use in technical classrooms and laboratories.

Technical Specifications

What's Included in the Kit

1 x Digital IC Trainer with Display Board

1 x Assorted Pack of Solid-Core Hookup Wires (22-24 AWG)

1 x Mains AC Power Cord

1 x Detailed Laboratory Experiment Manual with Circuit Diagrams

Applications / Uses

Display Decoding: Implementing BCD (Binary Coded Decimal) to 7-segment decoding circuits using the built-in display modules to show decimal numbers.

Sequential Logic Circuits: Testing flip-flops (SR, JK, D, T), shift registers, and synchronous/asynchronous counters utilizing the onboard clock.

Logic Gate Verification: Proving Boolean truth tables for fundamental AND, OR, NAND, NOR, XOR, and XNOR logic gates.

Combinational Logic Circuits: Designing and verifying multiplexers, demultiplexers, encoders, and binary adders.

Prerequisite Training: Serving as foundational training before students advance to analog electronics trainers and microcontroller programming.

How to Use the Digital IC Trainer with Display

Preparation: Place the trainer on a dry, static-free workbench. Ensure the main power switch is in the OFF position before connecting the power cord to the AC mains.

IC Insertion: Carefully insert the required TTL or CMOS integrated circuit into the central solderless breadboard, ensuring the alignment notch indicates pin 1 correctly.

Circuit Wiring: Use the provided solid-core hookup wires to connect the +5V VCC and Ground (GND) to the appropriate IC pins. Connect the input pins to the onboard logic toggle switches.

Display Connection: For counter or decoder experiments, wire the IC output pins directly to the inputs of the built-in 7-segment display or the logic indicator LEDs.

Power On and Test: Switch the main power on. Toggle the input switches to cycle through logic states and visually verify the circuit's truth table via the LEDs or 7-segment display.

Safe Shutdown: Turn off the main power and carefully extract the ICs using an IC puller or by gently lifting from both ends to prevent bending the pins. Safety Note: Never modify circuit wiring while the board is powered on.

Care & Maintenance

Breadboard Care: Use only the correct gauge (22-24 AWG) solid-core wire. Inserting stranded wires, overly thick leads, or damaged components will stretch and ruin the internal spring contacts.

Cleaning: Wipe the enclosure and front panel gently with a dry, lint-free cloth. Do not use chemical solvents, aerosols, or water.

Static Precautions: Handle all TTL and especially CMOS ICs with care to prevent electrostatic discharge (ESD) damage during insertion and removal.

Storage: Disconnect the AC power cord and store the unit in a cool, dry laboratory cabinet when not in active use.

Why Choose Lab Exports

Lab Exports is a leading global manufacturer and exporter of precision educational electronics and scientific laboratory equipment. With decades of manufacturing expertise, we engineer our technical training boards to combine rigorous safety standards with pedagogical clarity. Our commitment to high-quality components and robust global supply chains ensures that educational institutions worldwide receive dependable, long-lasting equipment designed to elevate STEM curriculums.

Frequently Asked Questions

What is a Digital IC Trainer with Display used for?
The Digital IC Trainer with Display is used in educational laboratories to construct, test, and visually verify digital logic circuits, allowing students to observe numerical binary outputs directly on 7-segment LEDs.

Does the board require external power supplies?
No, the trainer is fully self-contained. It features a built-in, regulated DC power supply (typically +5V and ±12V) designed specifically for safely powering standard TTL and CMOS integrated circuits.

What is the purpose of the built-in 7-segment display?
The built-in 7-segment displays allow users to instantly visualize numerical outputs from digital circuits, such as BCD counters and decoders, without the hassle of wiring external display modules onto the breadboard.

What type of connecting wires should be used?
It is highly recommended to use 22-24 AWG solid-core hookup wires. Stranded wires or overly thick component leads can permanently damage the contact clips inside the solderless breadboard.

Is this trainer suitable for university engineering labs?
Yes, its comprehensive range of integrated features, robust build quality, and built-in short-circuit protection make it an ideal logic gate trainer kit for university-level electrical and computer engineering programs.
