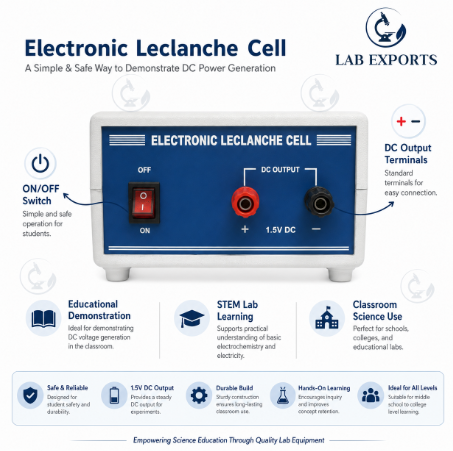

Electronic Leclanche Cell Manufacturer,Supplier and Exporter in India

Product Code : SCL-EAE-11162

The Electronic Leclanche Cell revolutionizes traditional physics lab equipment by completely eliminating the need for messy ammonium chloride solutions, porous pots, and deteriorating zinc rods. Utilizing advanced solid-state circuitry, this electronic substitute delivers a precise, non-fluctuating 1.5V DC output. This consistent voltage ensures that student measurements remain accurate throughout long laboratory sessions, which is often difficult to achieve with rapidly depleting chemical cells.

Built for the rigorous environment of academic laboratories, the unit is housed in a durable, impact-resistant casing. It features standard 4mm color-coded safety terminals, making it universally compatible with standard patch cords and other electricity and magnetism apparatus. By offering a plug-and-play solution, it allows educators to focus on teaching electrical principles rather than preparing and maintaining chemical batteries.

Key Features

Chemical-Free Operation: Operates entirely on solid-state electronics, eliminating the need for hazardous chemicals, glass jars, and consumable electrodes.

Precise 1.5V Output: The Electronic Leclanche Cell has a regulated 1.5V DC output, perfectly mirroring a fresh traditional cell for accurate experimental readings.

High Stability: Delivers a constant voltage without the rapid voltage drop (polarization) commonly experienced in wet cells during continuous current draw.

Short-Circuit Protection: Integrated electronic safeguards protect the internal circuitry from accidental student wiring errors or direct terminal shorts.

Universal Terminals: Features industry-standard 4mm color-coded (Red/Black) banana plug terminals for quick and secure circuit connections.

Durable Enclosure: Housed in a heavy-duty, insulated cabinet designed to withstand daily classroom wear and tear.

Technical Specifications

<

What's Included in the Kit

1 x Electronic Leclanche Cell Unit

1 x Mains AC Power Cord

1 x User and Instruction Manual

Applications / Uses

Potentiometer Experiments: Acting as a highly stable secondary cell for measuring unknown voltage or calibrating voltmeters.

EMF Comparison: Used alongside an Electronic Daniel Cell to compare the electromotive forces of different standard cells.

Wheatstone Bridge: Supplying steady voltage for calculating unknown resistance in bridge circuits.

Ohm's Law Verification: Providing a consistent 1.5V power source for basic current and resistance relationships.

General Circuitry: Functioning as a reliable, low-voltage power supply for various educational power supplies applications.

How to Use the Electronic Leclanche Cell

Preparation: Place the Electronic Leclanche Cell on a dry, level laboratory workbench. Ensure the main power switch is in the OFF position.

Power Connection: Plug the provided AC mains cord into a standard wall outlet and connect it to the back of the device.

Circuit Wiring: Using standard 4mm patch cords, connect the red terminal (Positive/Anode) and the black terminal (Negative/Cathode) to your experimental circuit (e.g., a potentiometer wire).

Activation: Switch the unit ON. The indicator LED will illuminate, confirming that a stable 1.5V DC is being supplied to the terminals.

Experimentation: Proceed with your electrical measurements. Unlike a chemical cell, you do not need to worry about resting the cell to prevent polarization.

Safe Shutdown: Once the experiment is complete, turn the unit OFF, disconnect the patch cords by pulling the plugs (not the wires), and unplug from the mains.

Care & Maintenance

Keep Dry: Although chemical-free, the unit contains sensitive electronics. Keep it away from water, wet chemistry benches, and excessive humidity.

Terminal Care: Do not force oversized plugs into the 4mm sockets, as this will damage the internal contacts and lead to fluctuating voltage readings.

Cleaning: Wipe the exterior gently with a dry, lint-free cloth. Do not use chemical solvents.

Storage: Store the unit in a clean, dust-free cabinet when not in active lab use to ensure longevity.

Why Choose Lab Exports

Lab Exports is a globally recognized manufacturer and exporter of precision scientific instruments and didactic educational models. We engineer our laboratory devices with a deep understanding of academic requirements, replacing outdated methods with safer, more reliable electronic alternatives. Backed by extensive manufacturing experience and strict quality control standards, our products guarantee accurate, repeatable results, making us the trusted choice for institutions worldwide.

Frequently Asked Questions

What is an Electronic Leclanche Cell used for?
It is used as a direct, chemical-free replacement for traditional wet Leclanche cells in physics labs, providing a steady 1.5V DC power source for experiments like EMF comparison and potentiometer calibration.

Does this unit require any chemicals or electrolytes?
No, this is a solid-state electronic device. It entirely eliminates the need for ammonium chloride, porous pots, and zinc rods, making it cleaner and safer for students.

What voltage does the Electronic Leclanche Cell provide?
The unit is internally regulated to provide a continuous, highly stable output of exactly 1.5V DC, mirroring the ideal voltage of a fresh chemical cell.

Is the device protected against short circuits?
Yes, the Electronic Leclanche Cell features built-in overload and short-circuit protection to prevent internal damage if a student accidentally crosses the positive and negative terminals.

Can I use standard lab wires with this cell?
Yes, the device is equipped with standard 4mm safety banana sockets, making it compatible with the standard patch cords used in most physics laboratories.
